Mechanical Design for Fabrication & Manufacturing
Practical mechanical design support focused on manufacturable, production-ready solutions.
We assist fabrication shops, manufacturers, and industrial clients develop manufacturable, production-ready mechanical solutions.• Fabrication Drawings
• Sheet Metal Design
• Mechanical Assemblies
• Prototype Development
• Equipment Redesign Support
WHAT DO WE DO?
We work with fabrication shops, machine shops, and equipment builders to deliver mechanical designs ready for real-world manufacturing.With over 10 years of experience in sheet metal, machining, and assemblies, our focus is reducing shop-floor issues and improving production efficiency.no project is too big or small for us to tackle.
• Fabrication-ready drawing packages
• Machined part design
• Weldments & assemblies
• 3D printing & prototype models
• 3D mechanical design and manufacturable assemblies
• Design review & optimization
Common Challenges We Help Solve
• Incomplete fabrication drawings
• Manufacturing bottlenecks
• Legacy equipment redesign
• Prototype development
• Overflow drafting support
• Assembly/fitment issues
Project Samples

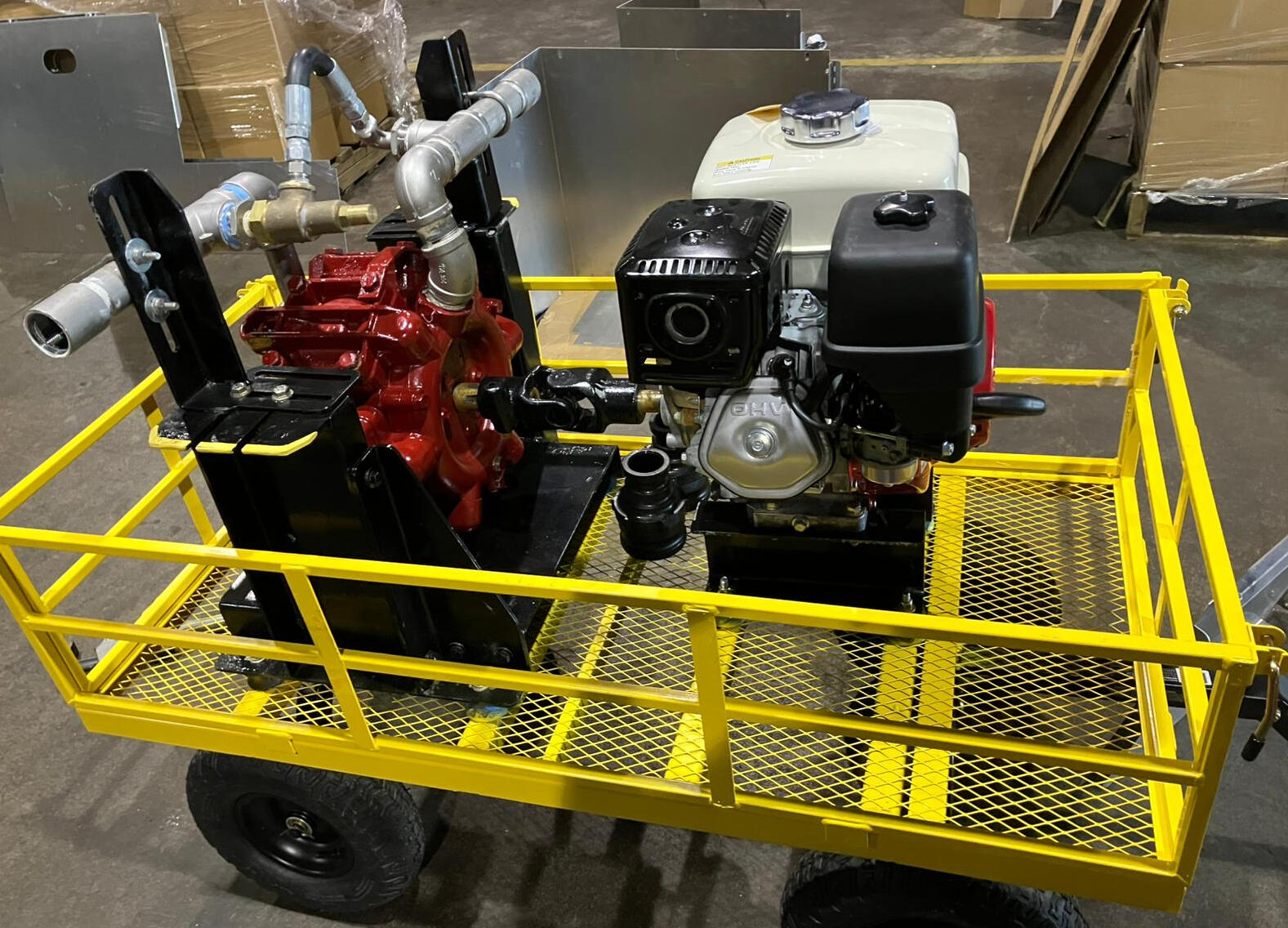

PUMP CART 1

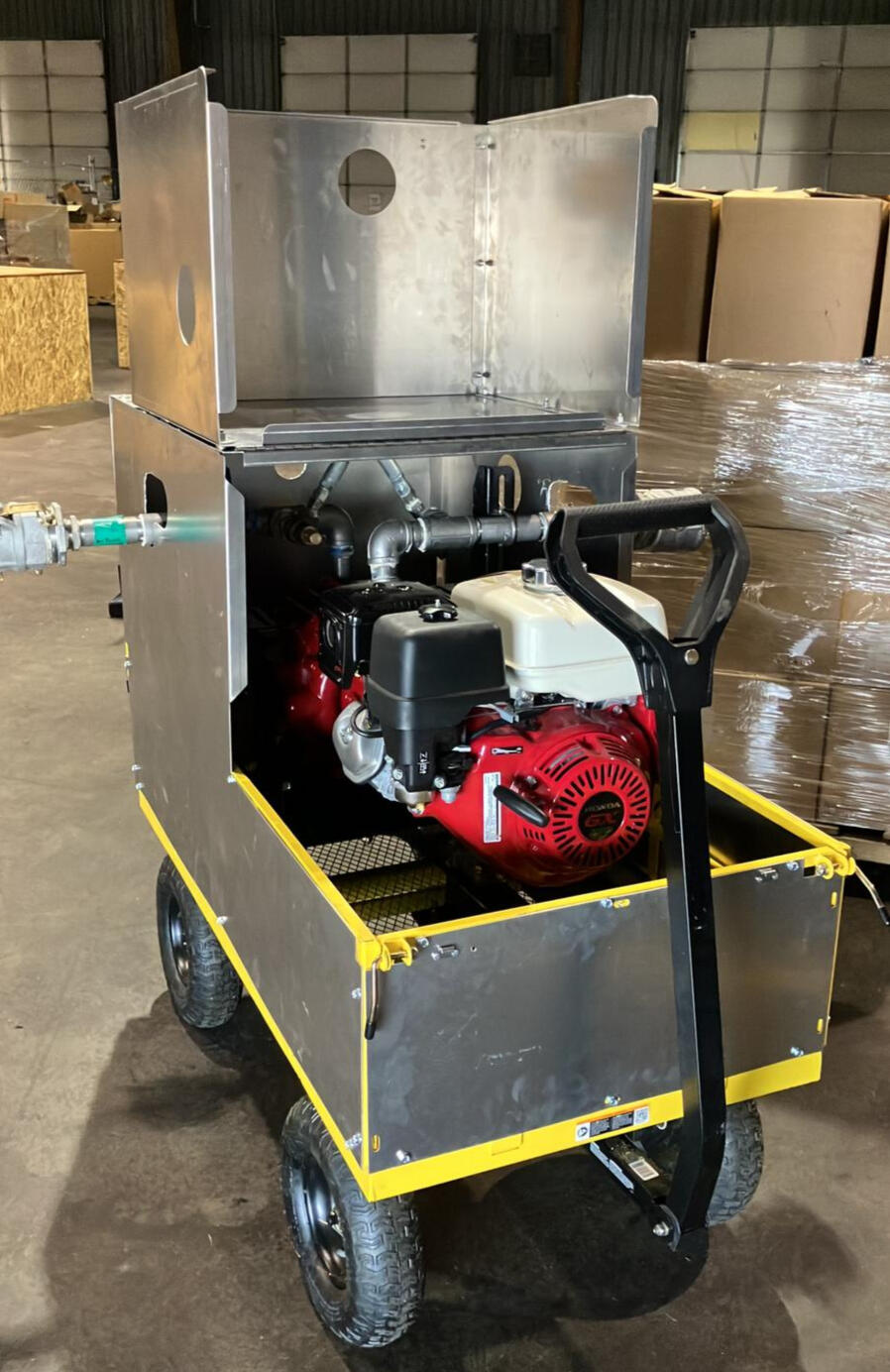

PUMP CART WITH SHEILD

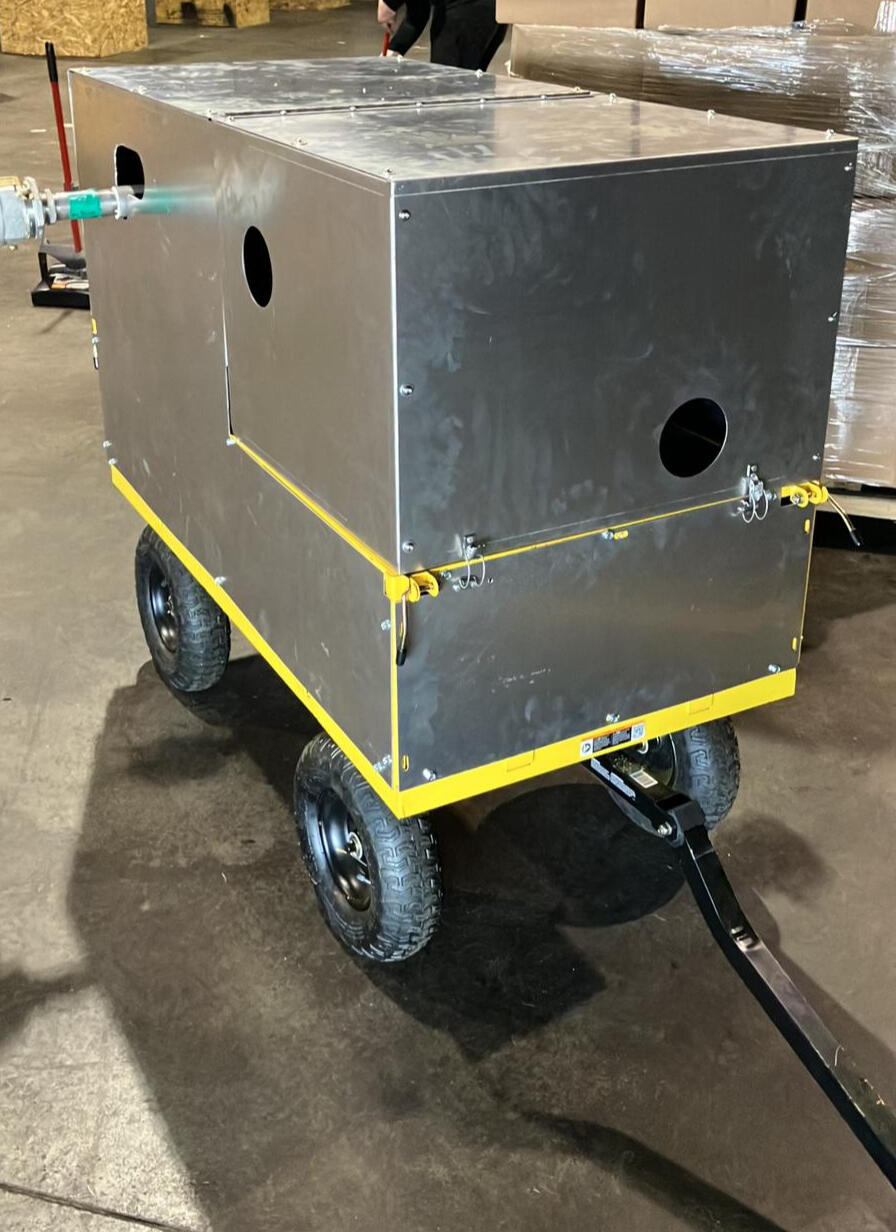

PUMP CART SHIELD CLOSED

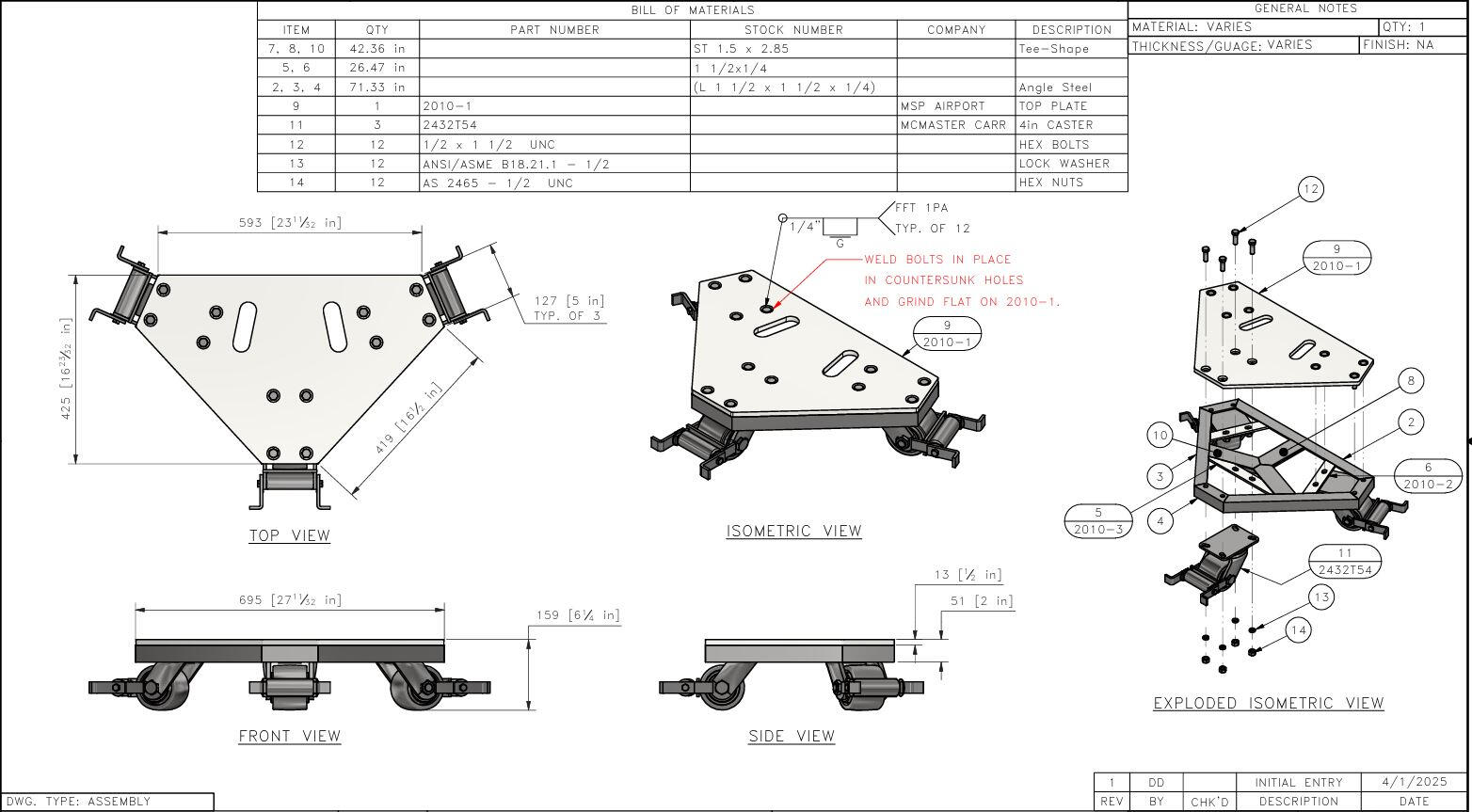

2000LBS DOLLY

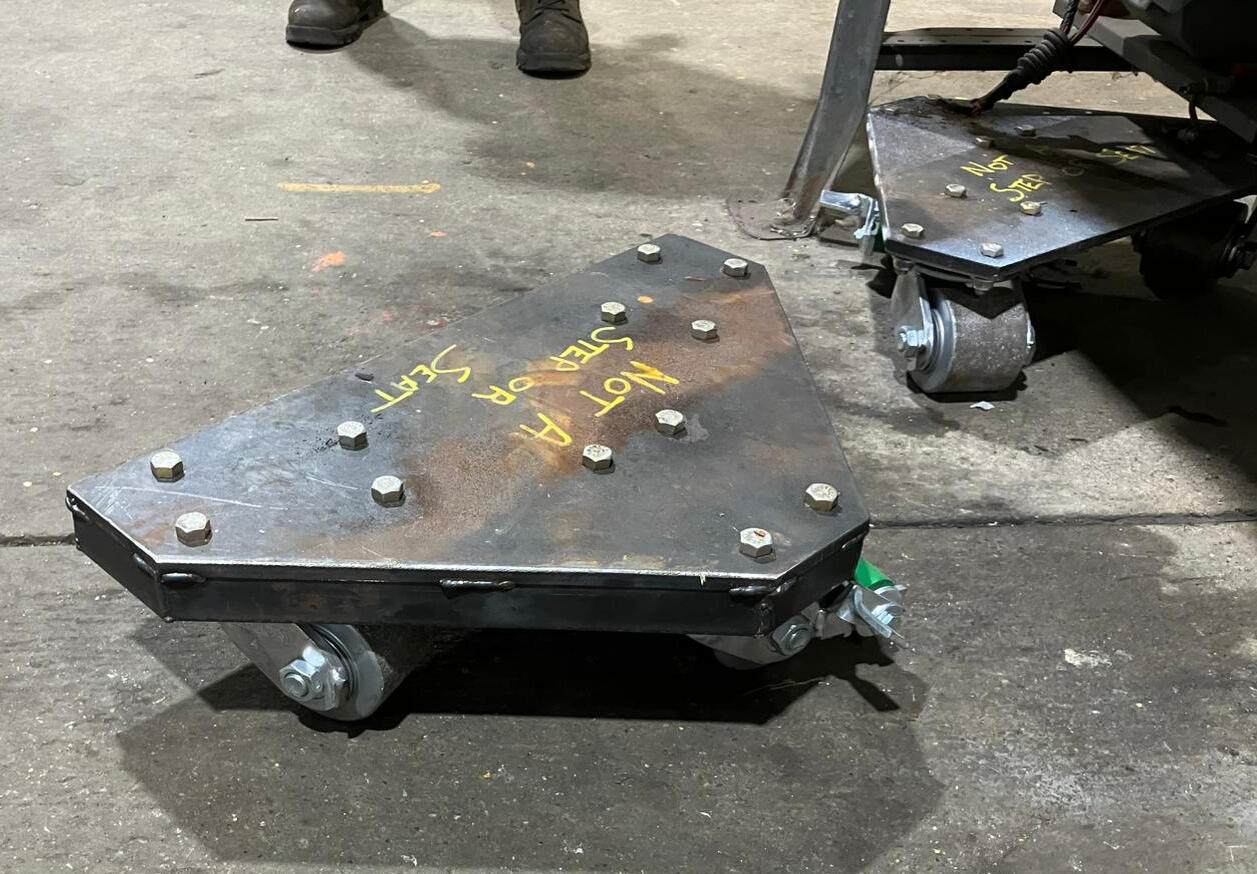

2000 LBS DOLLY 2

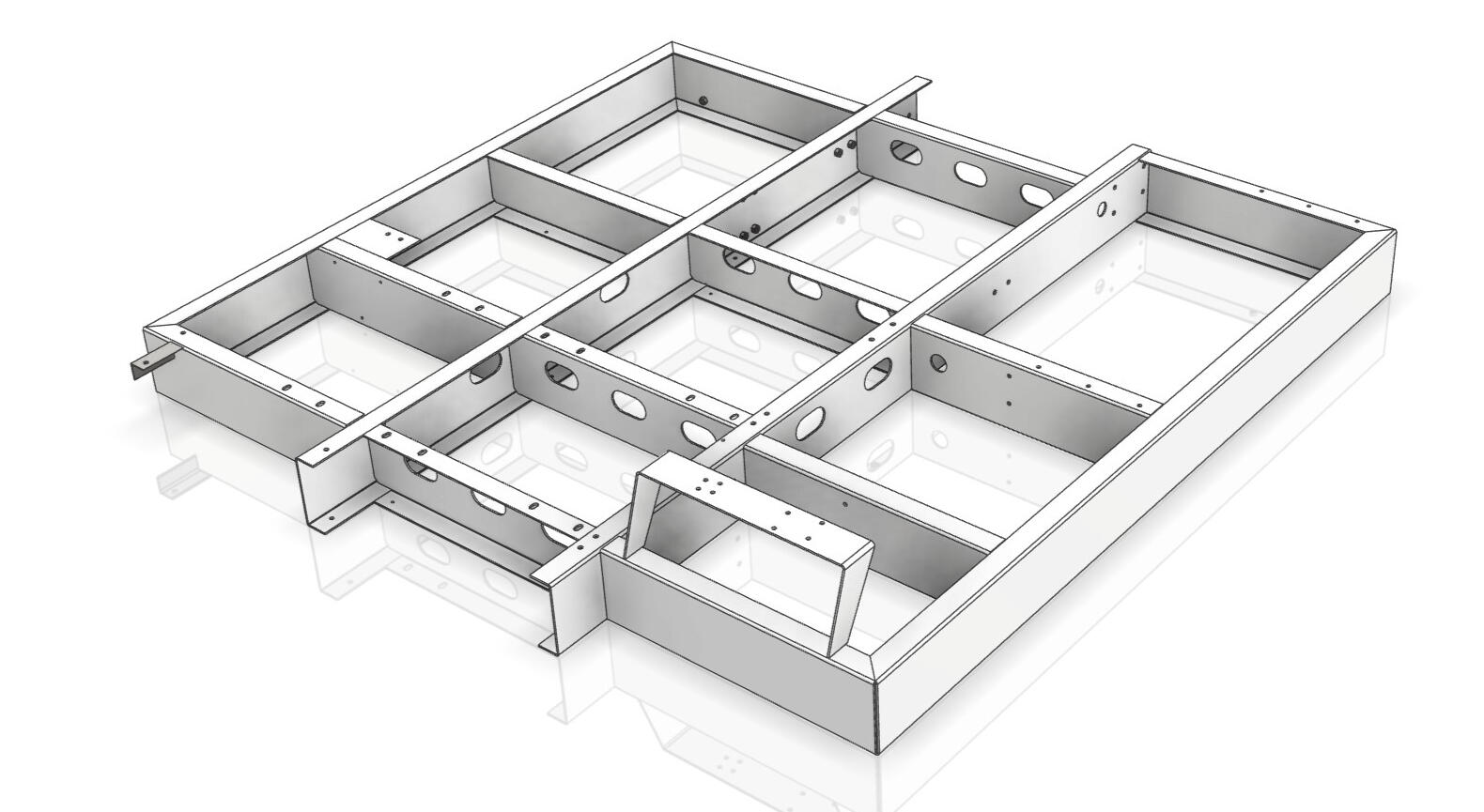

TRUCK SUB-FRAME CAD

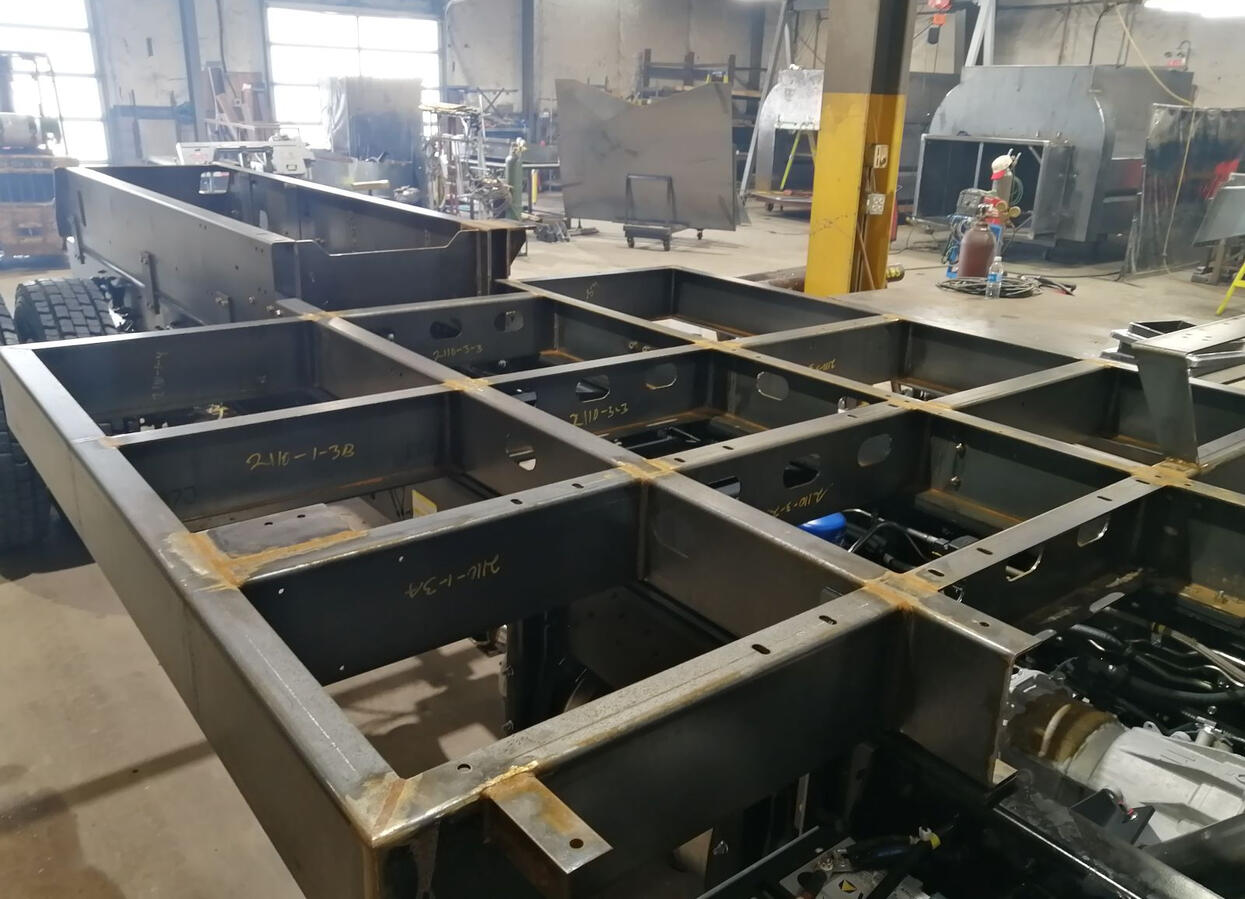

TRUCK SUB-FRAME

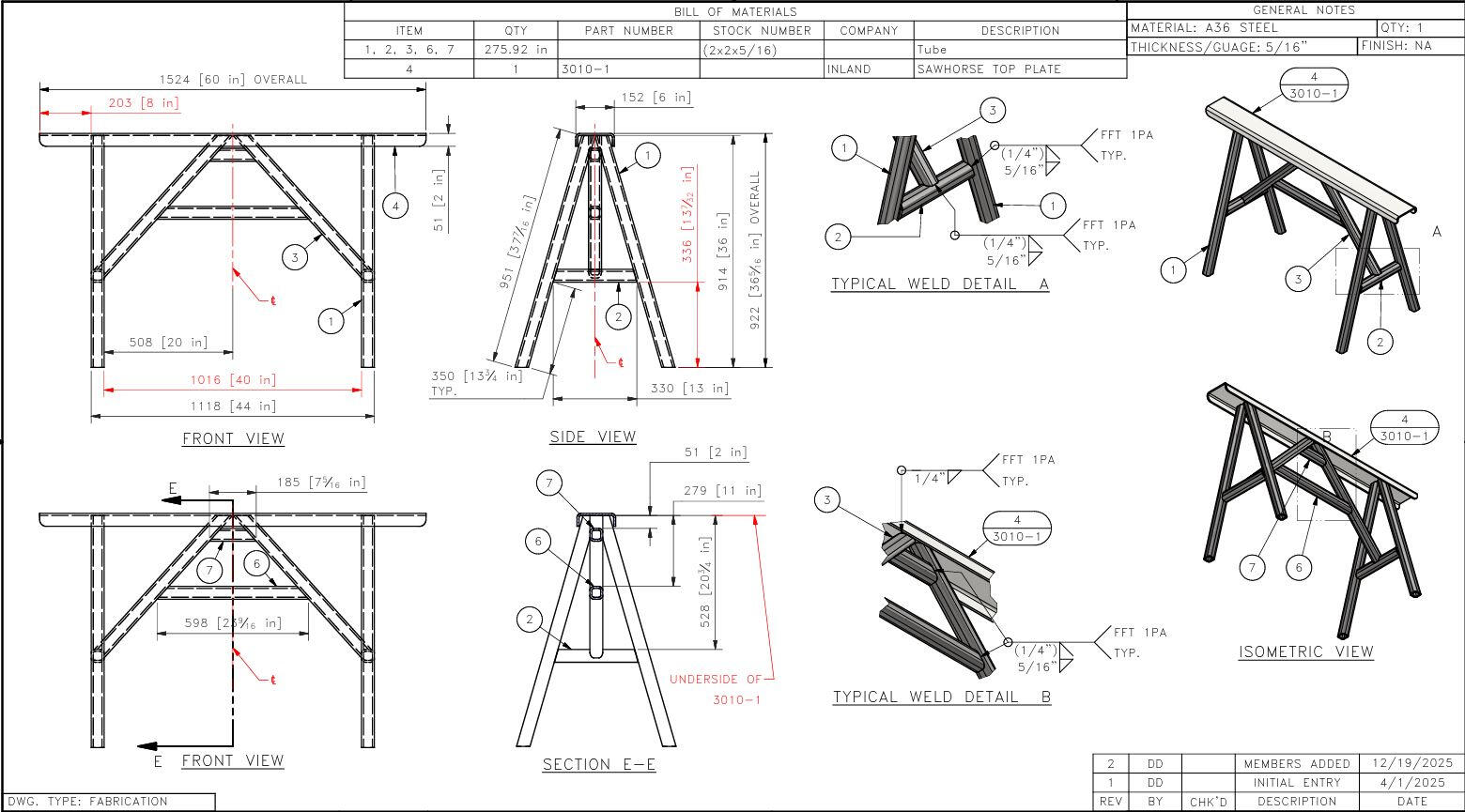

SAW HORSE DWG

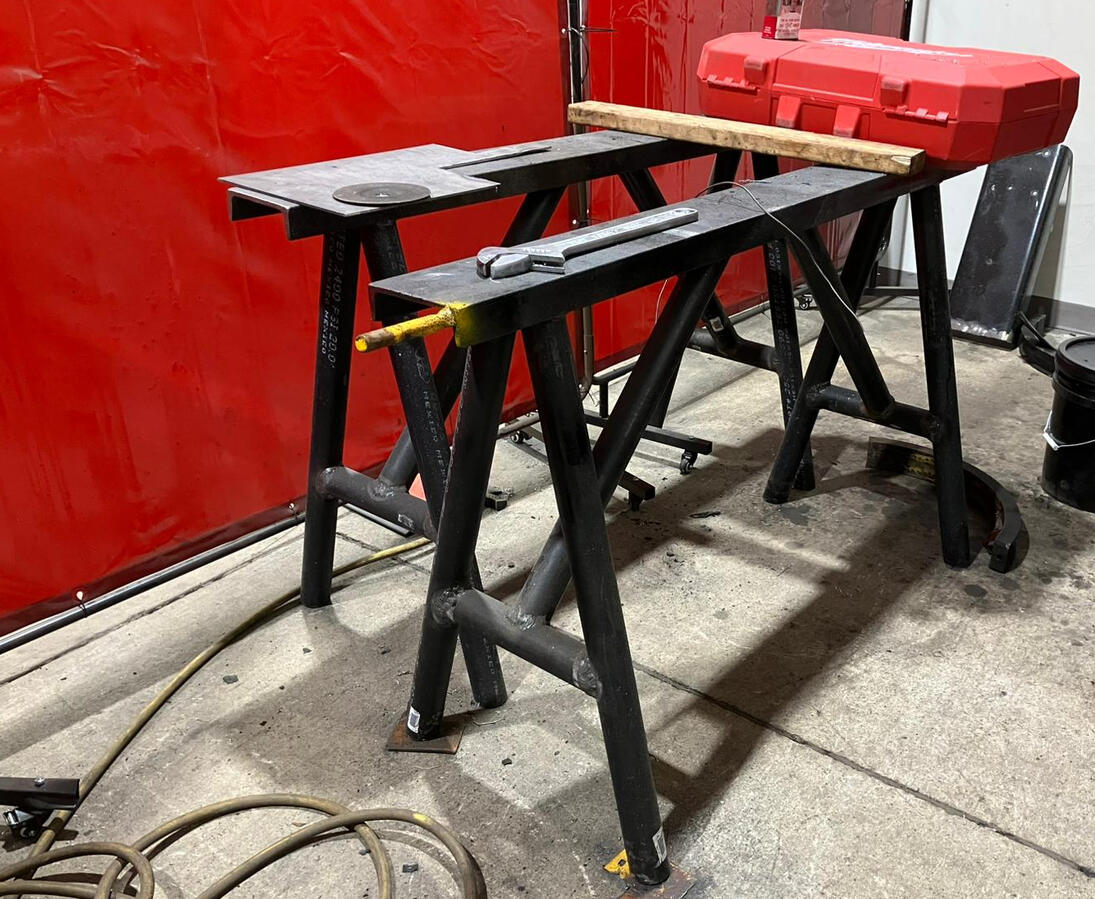

SAW HORSE
Why Work with Us?
• Reduced fabrication rework for the shop
• Production cost reduction
• Designs aligned with real fabrication and machining constraints
• Clear drawings that eliminate questions and errors
• Fast turnaround and responsive communication
• Flexible support for one-off jobs or ongoing work
What is your Project?
Stainless/ Structural Assembly
• Production ready cad package
• fabrication drawings
• Design for manufacturability

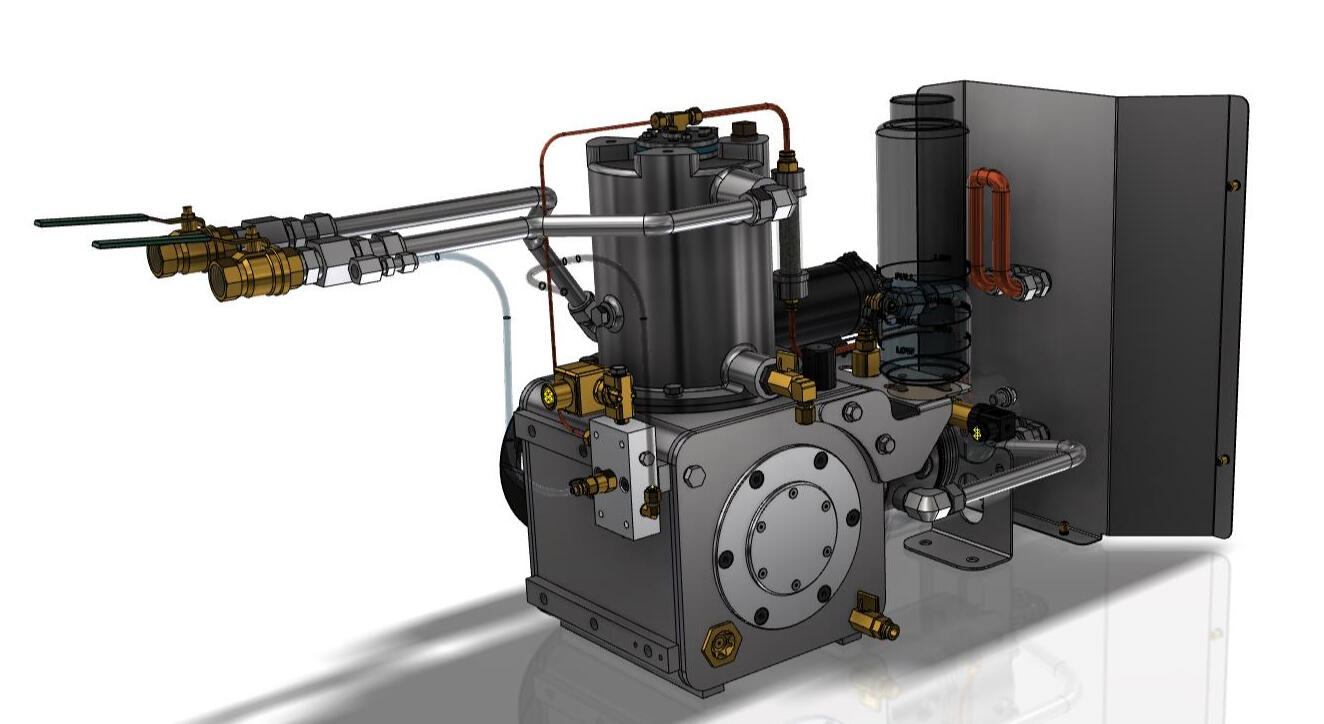

Mechanical Assemblies
Does your equipment fail constantly and in need of a solution?

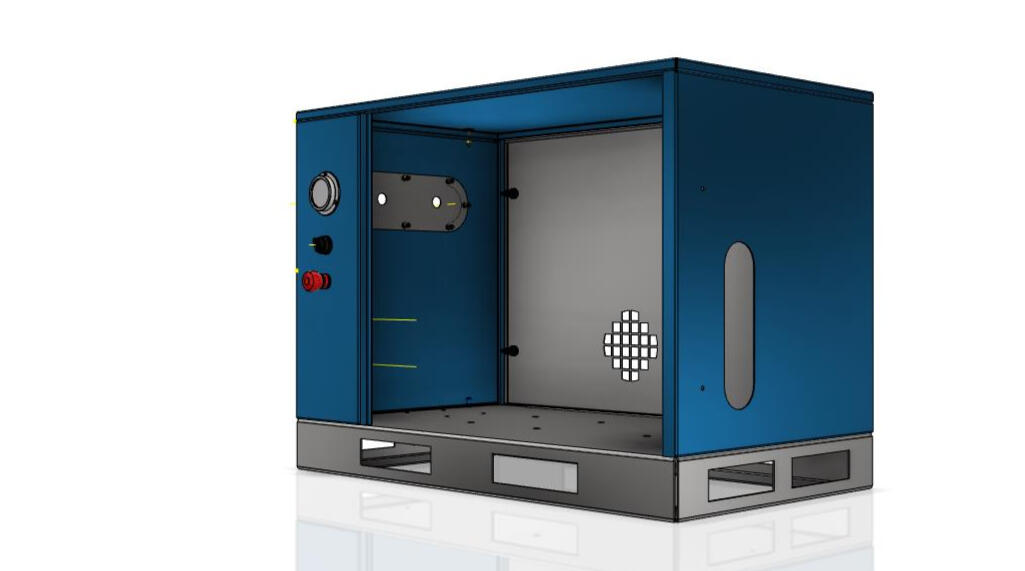

do you need a new enclosure designed?
• Engineering drawings with GD&T.
• cad files in step and pdf formats
Sheet Metal/ Panels & Enclosures
• package wih DXFs and bend info.
• thicknesses: 18GA to 1in.
• K-factor
How it works
1. Submit your project details by completing our online questionnaire.
your privacy is paramount to us.2. Receive a quote.
We will get back to you within 48hrs with complete quotation detailing scope and deliverables.3. Meet and discuss deliverables.
Once you have reviewed the quote we can schedule a call to discuss further.4. Design & delivery.
Drawings as well as CAD files will be submitted to you.
Have a project in mind?
Submit your details and we will review and respond within 24–48 hours.
